Rig Descriptions
Rig 2
Rig 2 is a self-propelled, hydraulically raised double with a depth rating of 8,500 feet with 4", 14.00 lb drillpipe. This Rig is a very fast mover and has an extremely small and flexible footprint.

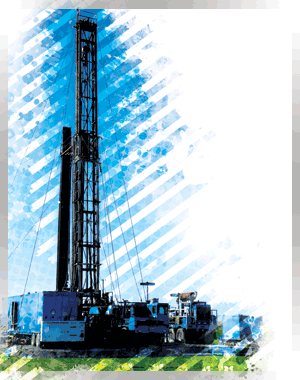

Rig 3
Rig 3 is a Hopper Hoistmobile double drum back-in unit. The drawworks main drum is grooved for 1” wire rope and the sandline drum is fitted with 9/16” sand line. This unit is powered by a Detroit Diesel Series 60 electronically controlled engine with an Allison CLT-750 six speed automatic transmission. The derrick is a Hopper 96 ft double, hydraulically raised and scoped with a rating of 220,000 lbs. with 6 lines

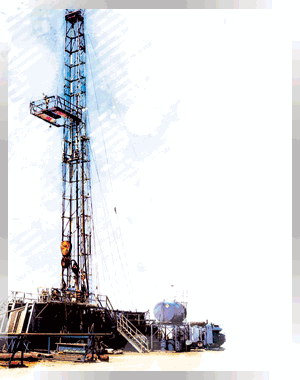

Rig 4
Rig 4 is a self-propelled, hydraulically raised double with a depth rating of 8,500 feet. This Rig is a very fast mover and has an extremely small and flexible footprint.

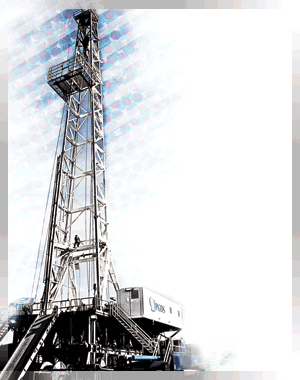

Rig 5
Rig 5 is a conventional, cantilever, box on box, triple drilling rig with a depth rating of 13,500 feet with 4 1/2” drillpipe

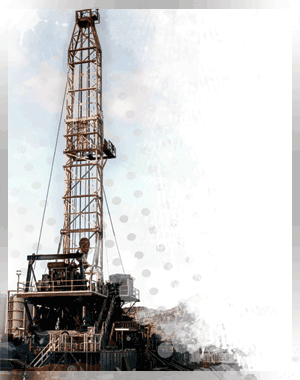

Rig 6
Rig 6 is a conventional box on box substructure with a “double” derrick that is hydraulically raised and cable scoped with a depth rating of 10,500 feet with 4 ½” drillpipe. The equipment is designed to move very fast and rig up on minimal size location.

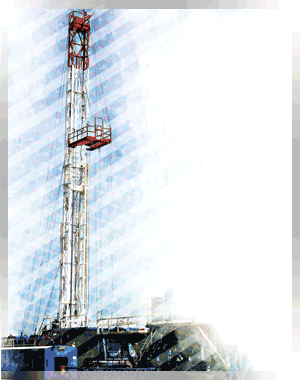

Rig 7
Rig 7 is a self-propelled, hydraulically raised and scoped double with a depth rating of 8,500’. This Rig is a very fast mover and has an extremely small and flexible footprint.

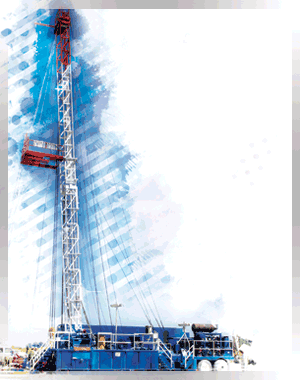

Rig 8
Rig 8 is a Service King Manufacturing double drum back in unit The drawworks main drum is grooved for 1” wire rope and the sandline drum is fitted with 9/16” sand line. This unit is powered by Series 60 Detroit Diesel electronically controlled engine with an Allison CLT-750 six speed automatic transmission. The derrick is a SKM 96 ft double, hydraulically raised and scoped with a rating of 220,000 lbs. with 6 lines.

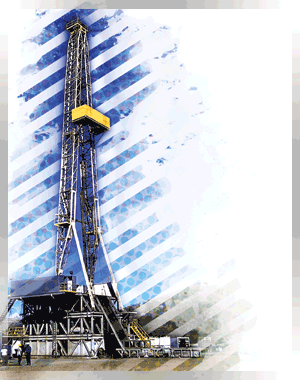

Rig 9
Rig 9 is a conventional, full view, box on box, triple drilling rig with a depth rating of 16,500 feet with 4 1/2” drillpipe.
